Gantry Crane

06/Mar/2014

MASA Jurutera has completed a design and detailing job of gantry crane for precast beams erection. The erection gantry is used to lift the precast beams individually and placed on the support. The erection gantry is required because of poor ground condition at site.

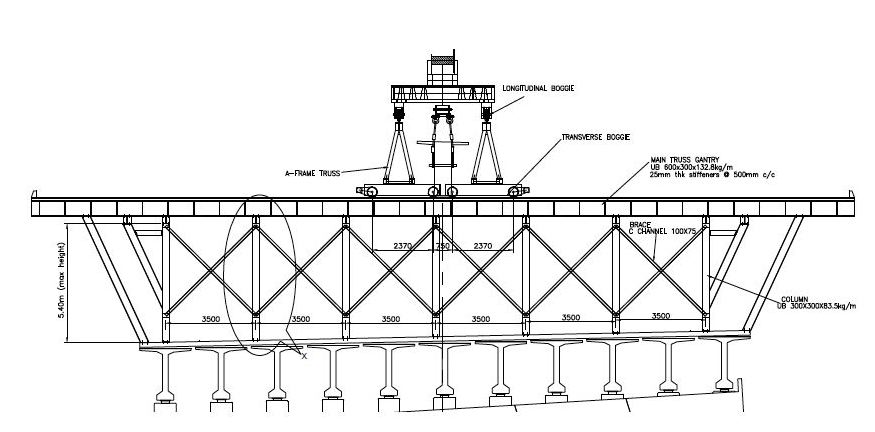

Description: Macintosh HD:Users:mdsanusi:Documents:MASA:PROJECT:323_FASA3A:Crane.jpg








The gantry is designed to lift 80t of beams weight and required two set of A-Frame tubular steel truss and travelling on two pairs of trolley. Main girder is made of 600x300 UB section and supported by series gantry columns.

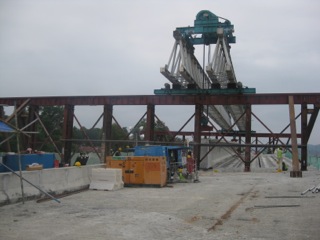

Description: Macintosh HD:Users:mdsanusi:Documents:MASA:PROJECT:323_FASA3A:CRANE BEAM:IMG_8357.jpeg
